YUV Sensor (V4L2 Sensor)

Important

All the bash commands shown here are based on Genio 720-EVK and an OmniVision OV5640 sensor. For Genio 520-EVK, users can follow the same steps to perform the setup by changing the name from 720 to 520. You might get different operation results depending on the platform you use.

This chapter shows how to receive YUV sensor data and directly dump it to the DRAM under V4L2 Sensor architecture on Genio 520/720-EVK.

Camera Daughter Board 

The YUV camera DTB for Genio 520/720-EVK is IoT-CAM-DTB-D9. It contains an OmniVision OV5640 sensor. The camera DTB connects with the Genio 520/720-EVK through a 22-pin FPC CAM-DTB-FPC-V2, which is compatible with the Raspberry Pi 22-pin camera cable.

Connect the Camera to the EVK 

The EVK features two MIPI-CSI ports, allowing connection of up to two cameras. There is an FPC connecting the camera daughterboard to the EVK. Follow the figures below to complete the camera hardware settings.

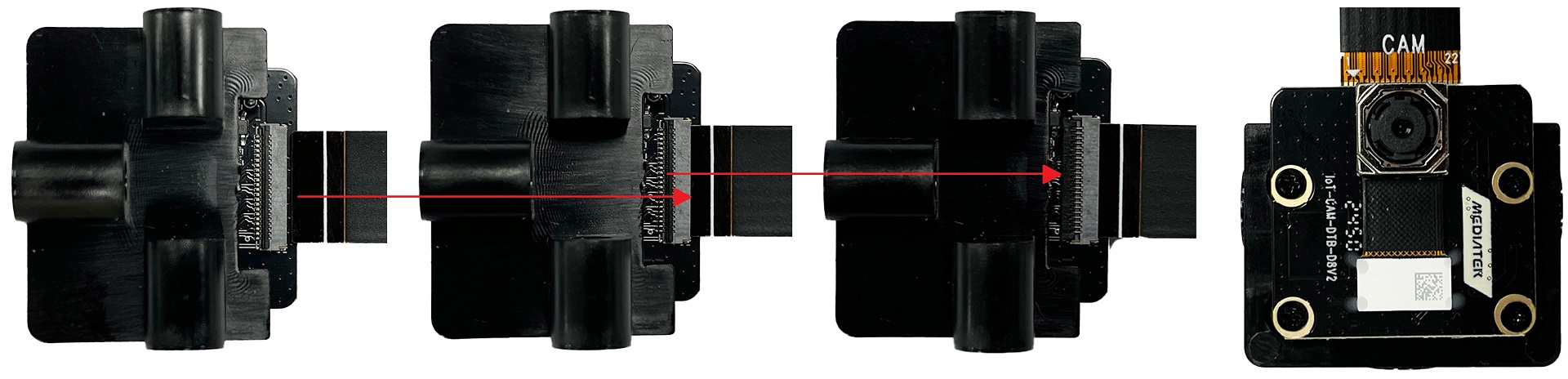

../../../../_images/sw_yocto_app-dev_camera_gen2_board_FPC_installation.jpg — Camera Board FPC Installation

../../../../_images/sw_yocto_app-dev_camera_gen2_EVK_FPC_installation.jpg — Genio 520/720-EVK FPC Installation

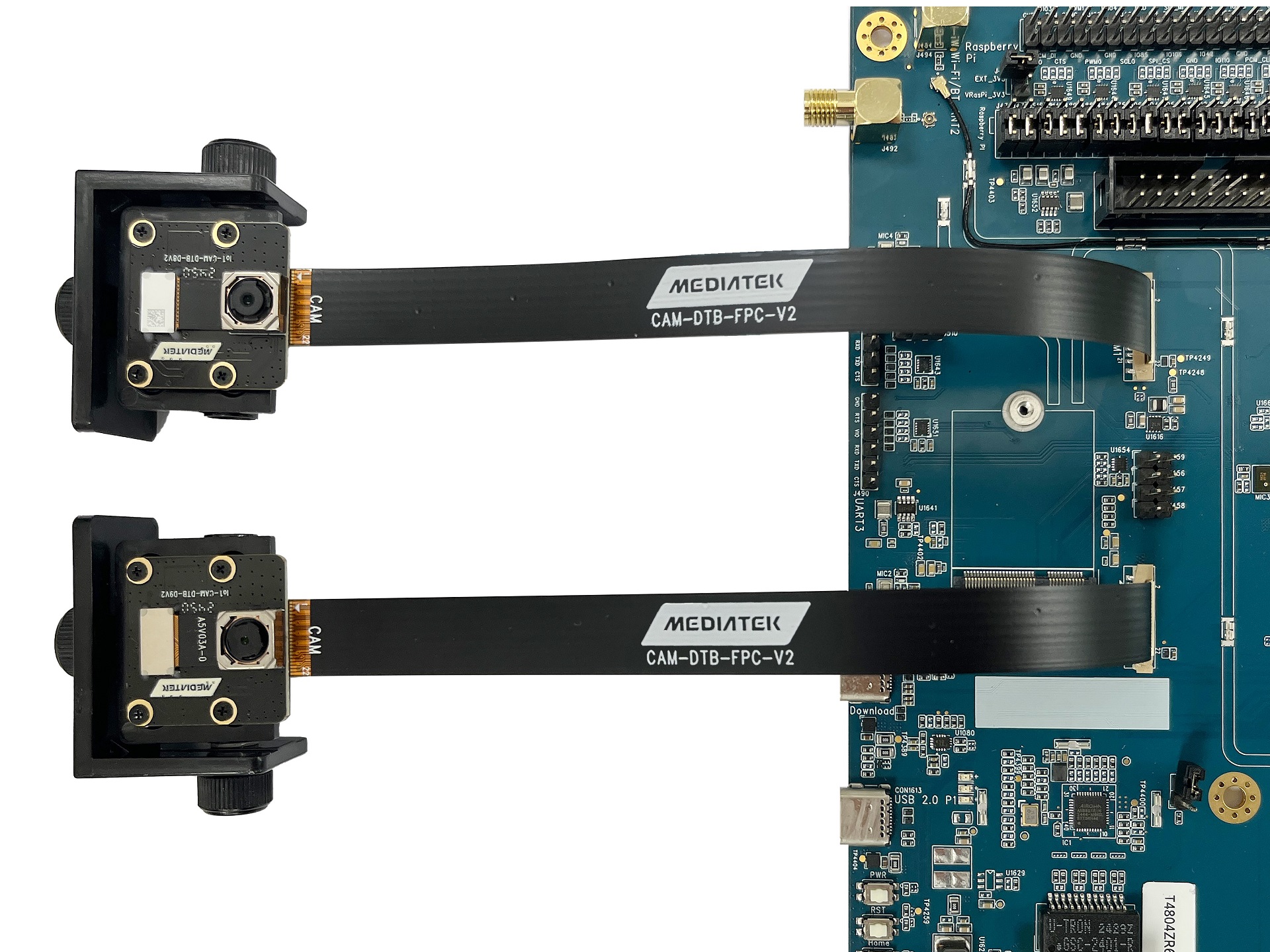

../../../../_images/sw_yocto_app-dev_camera_gen2_EVK_board_connection.jpg — Genio 520/720-EVK and Camera Board Connection

Select Camera Device Tree Blob Overlay 

The camera is inactive by default. The kernel must load a specific device tree blob overlay to enable the camera. Please refer to the bl33 (u-boot) section for more details.

YUV Camera DTBO for Genio 520/720-EVK
Platform	CSI0	CSI1	DTBO	Usage
Genio 520/720-EVK	OV5640	x	camera-ov5640-csi0-std.dtbo	Enable 2-lane CAM-DTB-D9 w/ OmniVision OV5640 on CAM0 using standard V4L2 driver
Genio 520/720-EVK	x	OV5640	camera-ov5640-csi1-std.dtbo	Enable 2-lane CAM-DTB-D9 w/ OmniVision OV5640 on CAM1 using standard V4L2 driver
Genio 520/720-EVK	OV5640	OV5640	camera-ov5640-dual-std.dtbo	Enable 2-lane CAM-DTB-D9 w/ OmniVision OV5640 on CAM0 and CAM1 using standard V4L2 driver

genio-flash --list-dtbo
List of available DTBO:
      ...
      camera-ov5640-csi0-std.dtbo
      camera-ov5640-csi1-std.dtbo
      camera-ov5640-dual-std.dtbo
      ...
genio-flash --load-dtbo camera-ov5640-csi0-std.dtbo # Single YUV camera on CAM0
genio-flash --load-dtbo camera-ov5640-csi1-std.dtbo # Single YUV camera on CAM1
genio-flash --load-dtbo camera-ov5640-dual-std.dtbo # Dual YUV camera on CAM0 and CAM1

Warning

Please select the DTBO according to the CSI slot to which the camera sensor is connected. For example, if the camera is connected to the CAM0 slot, please load the dtbo camera-ov5640-csi0-std.dtbo. Otherwise, the camera initialization will fail.

Supported Formats and Sizes 

Platform	Sensor	Stream Type	Size	Frame rate	Format	MIPI Lanes
Genio 520/720-EVK	OmniVision OV5640	Preview	1920x1080	30	YUYV	2

Note

The supported format, resolution, and frame rate depend on the capabilities of the sensor and SoC.

Media Device 

The media device represents the internal topology of a media system like ISP. Topology settings, including links, pads, and entities, can be configured through the media device. Therefore, the first step is to find the target media device node.

export MEDIA_DEV=$(v4l2-ctl -z platform:$(basename `find /sys/bus/platform/devices/ -name "*seninf-top"`) --list-devices | grep media)
echo ${MEDIA_DEV}
/dev/media1

Warning

The assigned node number for the media device may vary depending on the sequence of the probing process during the boot-up phase. As such, it is crucial to ensure the accuracy of the media device node before using the camera.

Video Device 

The video device is the interface for users to obtain the images. On Genio 520/720-EVK, they are called 1a09[2-7]000\.camsv[2-7] video stream. media-ctl is a useful tool to list video devices.

declare -a VIDEO_DEV=($(for i in `find /sys/bus/platform/devices/ -name "*camsv*" | sort`; do media-ctl -d ${MEDIA_DEV} --entity "`basename $i` video stream" ; done))
echo ${VIDEO_DEV[*]}
/dev/video5 /dev/video6 /dev/video7 /dev/video8 /dev/video9 /dev/video10

Warning

The assigned node number for the video device may vary depending on the sequence of the probing process during the boot-up phase. As such, it is crucial to ensure the accuracy of the video device node before using the camera.

Launch Camera 

The initial step is to link all the necessary components within the media device. The structure of the YUV camera pipeline is quite straightforward. It consists of only three components: the sensor, SENINF, and CAMSV.

media-ctl -d ${MEDIA_DEV} -l "'ov5640 7-003c':0 -> 'seninf-0':0 [1]"
media-ctl -d ${MEDIA_DEV} -l "'seninf-0':1 -> '1a092000.camsv2':0 [1]"

The second step is to assign the correct format and size to each component within the camera pipeline.

media-ctl -d ${MEDIA_DEV} -V "'ov5640 7-003c':0 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'seninf-0':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'1a092000.camsv2':1 [fmt:YUYV8_1X16/1920x1080 field:none]"

Lastly, to activate the camera, users can use v4l2-ctl, gst-launch-1.0, or other V4L2 applications.

Use v4l2-ctl

v4l2-ctl -d ${VIDEO_DEV[0]} --set-fmt-video=width=1920,height=1080,pixelformat=YUYV --stream-mmap --stream-count=10 --stream-to=/tmp/serdes_vc0.yuv --verbose

Use gst-launch-1.0

gst-launch-1.0 v4l2src device=${VIDEO_DEV[0]} ! video/x-raw,width=1920,height=1080,format=YUY2 ! v4l2convert output-io-mode=dmabuf-import ! video/x-raw,width=640,height=480 ! waylandsink sync=false

Note

To use MediaTek video codec and MDP hardware, users MUST load video.dtbo. For more details, please refer to Genio 720-EVK Video Codec.

Multi-Camera Support 

If you connect two camera D9 daughter boards to the Genio 520/720-EVK, you can launch two cameras simultaneously. After loading the dual OV5640 camera DTBO, use the following commands to launch the cameras.

../../../../_images/sw_yocto_app-dev_camera_g720-ov5640-dual-media-device.svg — The media graph of camera subsystem with dual cameras

Configure the links, pads, and entities of the media device.

# MIPI-CSI CAM0 (Use camsv2)
media-ctl -d ${MEDIA_DEV} -l "'ov5640 7-003c':0 -> 'seninf-0':0 [1]"
media-ctl -d ${MEDIA_DEV} -l "'seninf-0':1 -> '1a092000.camsv2':0 [1]"
media-ctl -d ${MEDIA_DEV} -V "'ov5640 7-003c':0 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'seninf-0':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'1a092000.camsv2':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
# MIPI-CSI CAM1 (Use camsv3)
media-ctl -d ${MEDIA_DEV} -l "'ov5640 8-003c':0 -> 'seninf-1':0 [1]"
media-ctl -d ${MEDIA_DEV} -l "'seninf-1':1 -> '1a093000.camsv3':0 [1]"
media-ctl -d ${MEDIA_DEV} -V "'ov5640 8-003c':0 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'seninf-1':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'1a093000.camsv3':1 [fmt:YUYV8_1X16/1920x1080 field:none]"

Launch the camera streams through GStreamer.

# MIPI-CSI CAM0 (Use camsv2)
gst-launch-1.0 v4l2src device=${VIDEO_DEV[0]} ! video/x-raw,width=1920,height=1080,format=YUY2 ! v4l2convert output-io-mode=dmabuf-import ! video/x-raw,width=1280,height=720 ! fpsdisplaysink video-sink=waylandsink sync=false &
# MIPI-CSI CAM1 (Use camsv3)
gst-launch-1.0 v4l2src device=${VIDEO_DEV[1]} ! video/x-raw,width=1920,height=1080,format=YUY2 ! v4l2convert output-io-mode=dmabuf-import ! video/x-raw,width=1280,height=720 ! fpsdisplaysink video-sink=waylandsink sync=false &

You will see two camera streams displayed on the Weston desktop.

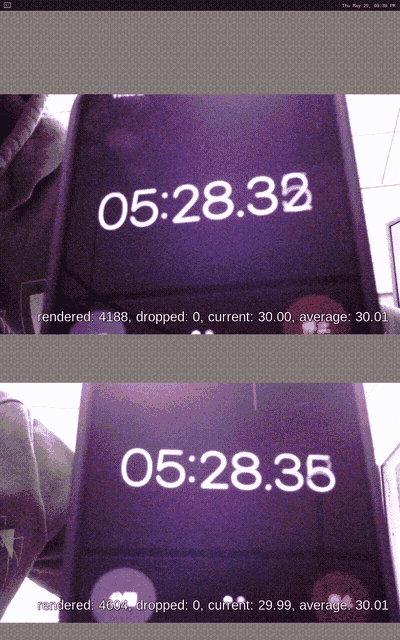

../../../../_images/sw_yocto_app-dev_camera_g720-ov5640_multi-camera.gif — Show multi-camera through GStreamer
