Genio 520/720-EVK

Overview

Genio 520/720-EVK board is an evaluation kit of MediaTek. The provided low power data may vary due to hardware differences and has a tolerance of 10% error. These data are for reference only.

Measurement Settings

• Software Version : v25.1

• Operating Voltage : 4.2 V

• The LEDs on board and some power related modules need to be removed before measurement.

  1. System LEDs : R3821, R3818, R3819

  2. System Power : R2046, R1206

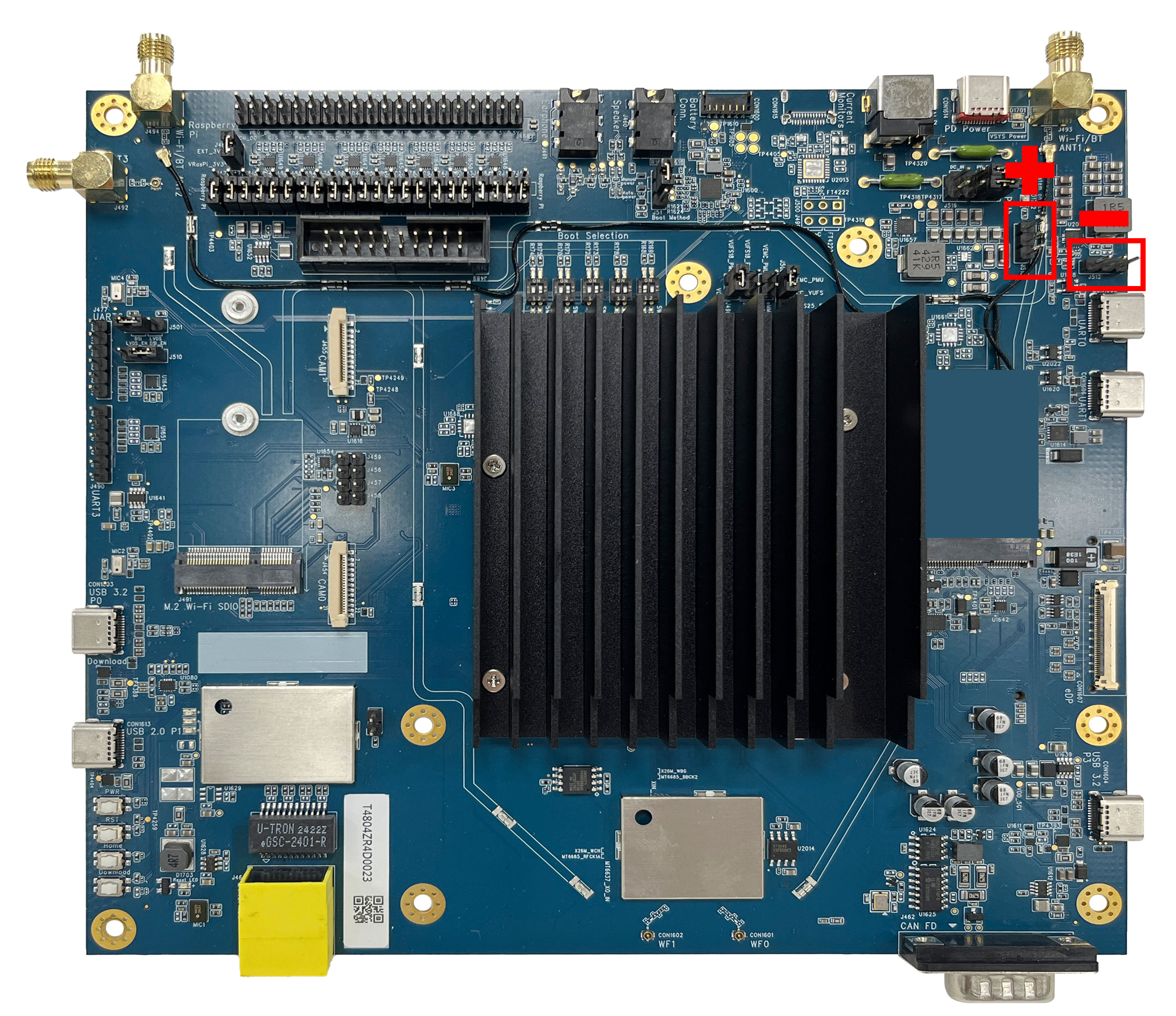

• Connect power supply to EVK and start measurement.

  1. J513 (+)

  2. J512 (-)

Power-Supply

Power Consumption of Genio 520/720-EVK

The following is the power consumption data of Suspend and Idle, and we will provide the measurement SOP.

Table 1. Low Power Data of G720-EVK

	Current (mA)	Power (mW)
Suspend	46.65	195.93
Idle (cluster-off state)	138.95	583.59

Table 2. Low Power Data of G520-EVK

	Current (mA)	Power (mW)
Suspend	45.01	189.04
Idle (cluster-off state)	136.75	574.35

Suspend

• Step 1 : Power on DUT

• Step 2 : Wait for the system to initialize, about 1-2 minutes

• Step 3 : Set the system to suspend mode.

  echo mem > /sys/power/state


• Step 4 : The console cannot input commands, which means it enters suspend

• Step 5 : Wait for 1 minute and start measuring

Idle

• Step 1 : Power on DUT

• Step 2 : Wait for the system to initialize, about 1-2 minutes

• Step 3 : Turn off some extra services

  systemctl stop NetworkManager.service
  echo off > /sys/class/drm/card0-DSI-1/status


• Step 4 : Wait for 1 minute and start measuring
