Genio 360-EVK

Genio 360-EVK board is an evaluation kit of MediaTek MT8366 platform, which is a high performance IoT platform with rich features.

This section describes board features that are relevant to Android.

Documentation

For Genio 360P/360-EVK hardware documentation and the EVK User Guide, please visit the IoT Developer Home page.

Genio 360P/360-EVK
|G360P/360| Isometric View

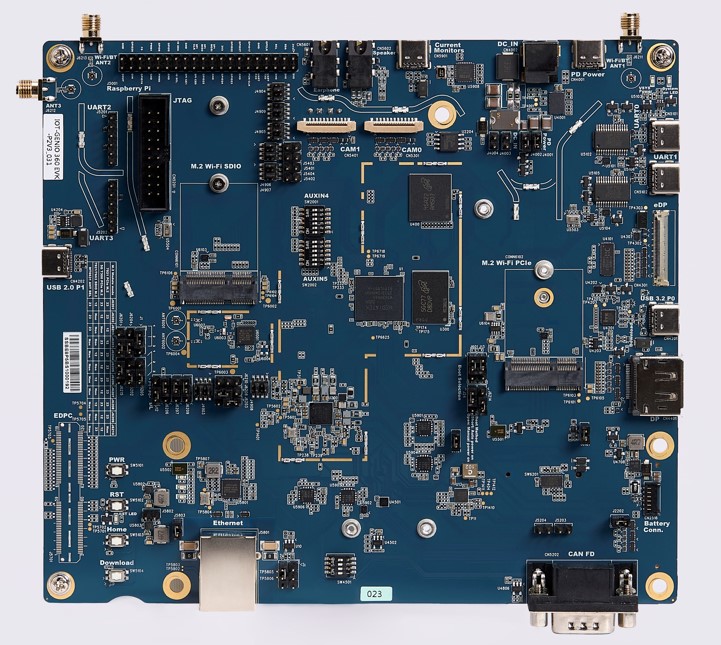

|G360P/360| Top View

Genio 360P/360-EVK Ports

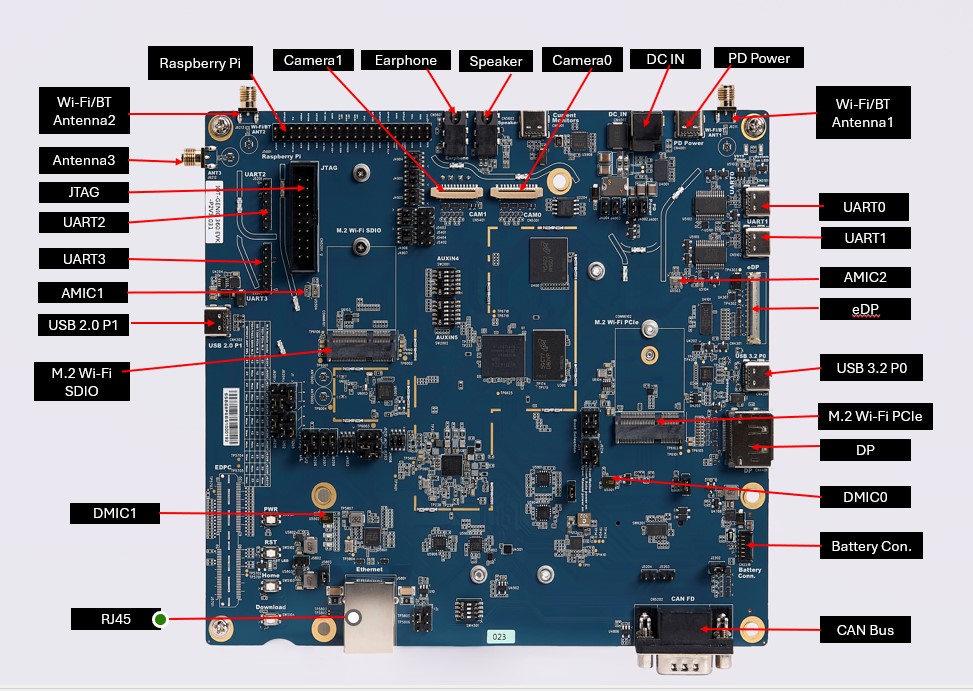

Ports of |G360P/360| main board

Ports of Genio 360P/360-EVK main board

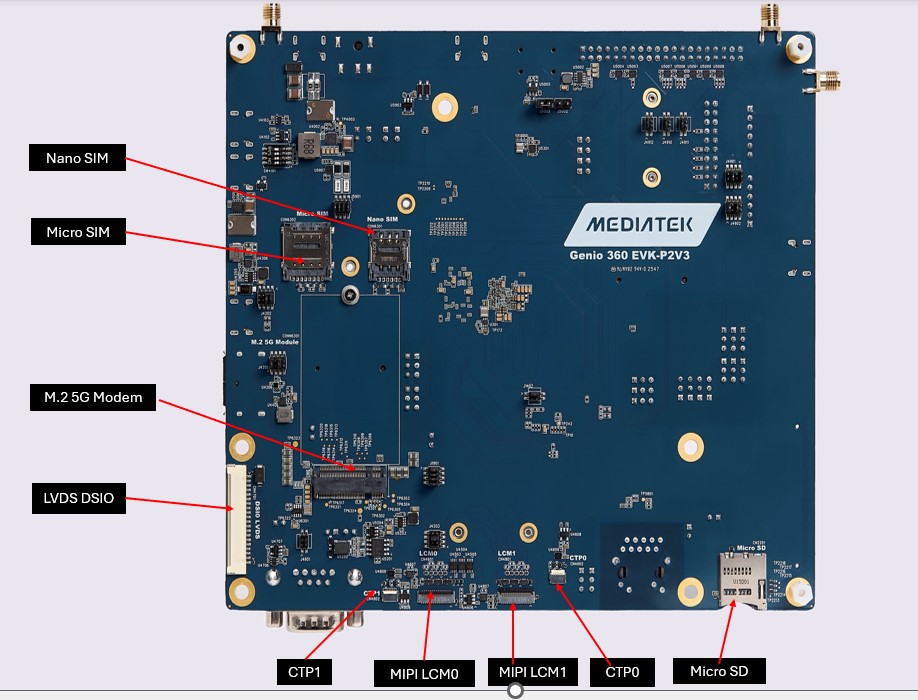

Ports on the bottom side of |G360P/360| main board

Ports on the bottom side of Genio 360P/360-EVK main board

Block Diagram

|G360P/360| Block Diagram

Genio 360P/360-EVK Block Diagram

Packing List

Genio 360 EVK Kit Contents

No.

Part Number or Marketing

Item Name

Description

Quantity

1

Genio 360 EVK-P2V3

OR

Genio 360P EVK-P2V3

Genio 360 EVK Main Board

OR

Genio 360P EVK Main Board

1

2

IoT-CAM-DTB-D8V2

Camera Module D8

IMX258 Camera Module

1

3

IoT-CAM-DTB-D9V2

Camera Module D9

OV5640 Camera Module

1

4

CAM-DTB-FPC-V2

FPC for Camera Board

FPC is Suitable for Both D8 and D9 Camera Boards

2

5

7” LCD Panel

7” LCD Panel

With Touch Panel and FPC Cable

1

6

AW-XB468NF

Wi-Fi Module

M.2 Wi-Fi 6 Module (IC: MT7921L)

1

7

Wi-Fi Antenna

Wi-Fi Antenna

SMA Antenna

2

8

EA1062SBR

USB Type-C Power Adapter

1

Description of kit contents

Genio 360P/360-EVK Main Motherboard

These images show the main motherboard and relevant IO.

|G360P/360| Top View Main Motherboard

Genio 360P/360-EVK Top View Main Motherboard

|G360P/360| Bottom View Main Motherboard

Genio 360P/360-EVK Bottom View Main Motherboard

D8 Camera Board

The D8 camera board is integrated with a SONY IMX258 image sensor chip, which is a high-performance camera image processor with rich features.

D8 Camera Board

D8 Camera Board

D9 Camera Board

The D9 camera board is integrated with an OmniVision OV5640 image sensor chip, which is a high-performance camera image processor with rich features.

D9 Camera Board

D9 Camera Board

Board Feature Summary

At the current release, Android enables the following board features:

Supported Board Features

  • MediaTek CPU (MT8367/MT8366)

  • MediaTek PMIC (MT6366A)

  • MediaTek Charger (MT6375P)

  • 4GB LPDDR4X RAM (MT53E1G32D2FW-046 IT:C)

  • 64GB eMMC x 1 (Micron MTFC64GBCAQTC-IT)

  • Φ2.0 DC Jack x 1 (Supports 12V DC Input)

  • USB Type-C Power Adapter (20V PD Adapter)

  • Micro SD Card Connector x 1

  • Push Button x 4 (Power, Reset, Home, Download)

  • LED x 3 (System Power, Reset, DC-IN Power)

  • 4-lane MIPI DSI x 2 (MUX)

  • 4-lane MIPI CSI x 2

  • DP x 1 (Mode over USB Type-C)

  • LVDS x 1 (MUX)

  • eDP x 1 (MUX)

  • DP x 1 (MUX)

  • 10/100/1000M Ethernet x 1 (Airoha AN8801RIN/A)

  • USB Type-C Connector (UART) x 2 - UART Port for Trace Log with USB to UART Bridge IC

  • USB Type-C Connector (USB 3.2) x 1

  • USB Type-C Connector (USB 2.0) x 1

  • 3.5mm Earphone Jack x 1 (with Microphone Input)

  • 3.5mm Line Out Audio Jack x 1

  • Analog Microphone x 2 (Merry MMA102-006)

  • Digital Microphone x 2 (Merry MMD304-005)

  • UART Port x 4 (USB Port x 2, Pin Header x 2)

  • M.2 Slot Key E x 2 - For AzureWave AW-XB468NF Wi-Fi 6 & BT 5.2 Module - For Sona MT320 2230 Wi-Fi 6 & BT 5.4 Module - The M.2 slot designed on the EVK complies with the M.2 standard pin definition. Please ask the customer to confirm whether their M.2 module meets the M.2 standard pin definition.

  • M.2 Slot Key B x 1 - The M.2 slot designed on the EVK complies with the M.2 standard pin definition. Please ask the customer to confirm whether their M.2 module meets the M.2 standard pin definition.

  • 40-Pin 2.54mm Pin Header x 1 (for Raspberry Pi Like I/O Interface)

  • Micro SIM x 1

  • Nano SIM x 1

  • CAN Bus x 1 (RS-232 Connector)

Unsupported Board Features

Please refer to Android Releases section for detailed list on supported features.
